Pro Clima SOLITEX FRONTA WA - Wall lining membrane 75m² - 10132

€204.19

€173.56

incl. VAT

In stock

Delivery time 1-3 business days
Free shipping in Belgium starting from €50. We ship to all EU countries!

Customer support +32 497 10 45 02

Reference: 10132

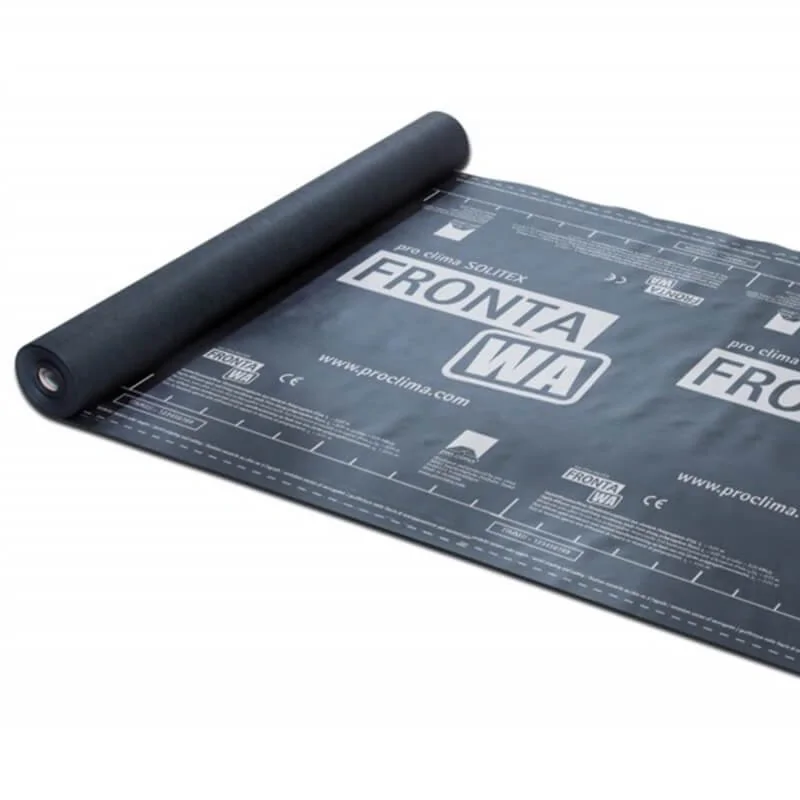

Pro Clima SOLITEX FRONTA WA - Wall lining membrane

Highly permeable 3-ply wall lining membrane with monolithic TEEE membrane, suitable for closed façades. For making walls externally windproof. Installation on boarding, wood-based panels and all insulation mats and boards.

Width: 1,5m / Length: 50m / Surface: 75m²

Item number Pro Clima: 10132

Lees meer

SOLITEX FRONTA WA

Highly permeable 3-ply wall lining membrane with monolithic TEEE membrane, suitable for closed façades

SOLITEX FRONTA WA

Advantages

Strong, 3-ply structure for protecting the wall structure
Protective function as a result of non-porous functional membrane that actively manages moisture
High nail tear resistance
For use behind closed façades
3 months of outdoor exposure

Application

For making walls externally windproof. Installation on boarding, wood-based panels and all insulation mats and boards.

Technical specs

	Material
Protective and covering fleece	Polypropylene microfibre
Membrane	monolithic TEEE

Attribute	Norm	Value
Colour		black
Surface weight	EN 1849-2	100 ±5 g/m² ; 0.33 ±0.02 oz/ft²
Thickness	EN 1849-2	0.45 ±0.05 mm ; 18 ±2 mils
Water vapour resistance factor µ	EN ISO 12572	110
sd-value	EN ISO 12572	0.05 ±0.02 m
g-value		0.25 ±0.1 MN·s/g
Vapor permeance	ASTM E 96	65.6 US perms
Reaction to fire	EN 13501-1	E
Exposure time		3 months
Water column	EN 20811	10 000 mm ; 32' 10"
Water resistance un-/aged*	EN 1928	W1 / W1
Tensile strength MD/CD	EN 12311-1	210 ±20 N/5 cm / 140 ±20 N/5 cm ; 24 ±2 lb/in / 16 ±2 lb/in
Tensile strength MD/CD aged*	EN 12311-1	190 ±20 N/5 cm / 120 ±20 N/5 cm ; 22 ±2 lb/in / 14 ±2 lb/in
Elongation MD/CD	EN 12311-1	90 ±10 % / 90 ±10 %
Elongation MD/CD aged*	EN 12311-1	70 ±10 % / 70 ±10 %
Nail tear resistance MD/CD	EN 12310-1	110 ±20 N / 140 ±20 N ; 25 ±4 lbf / 31 ±4 lbf
*) Artificial ageing by long term	EN 1297 / EN 1296	passed
Flexibility at low temperature	EN 1109	-40 °C ; -40 °F
Temperature resistance		-40 °C to +100 °C ; -40 °F to 212 °F
Thermal conductivity		0.17 W/(m·K) ; 1.18 BTU·in/(h·ft²·F)
CE labelling	EN 13859-2	available

General conditions

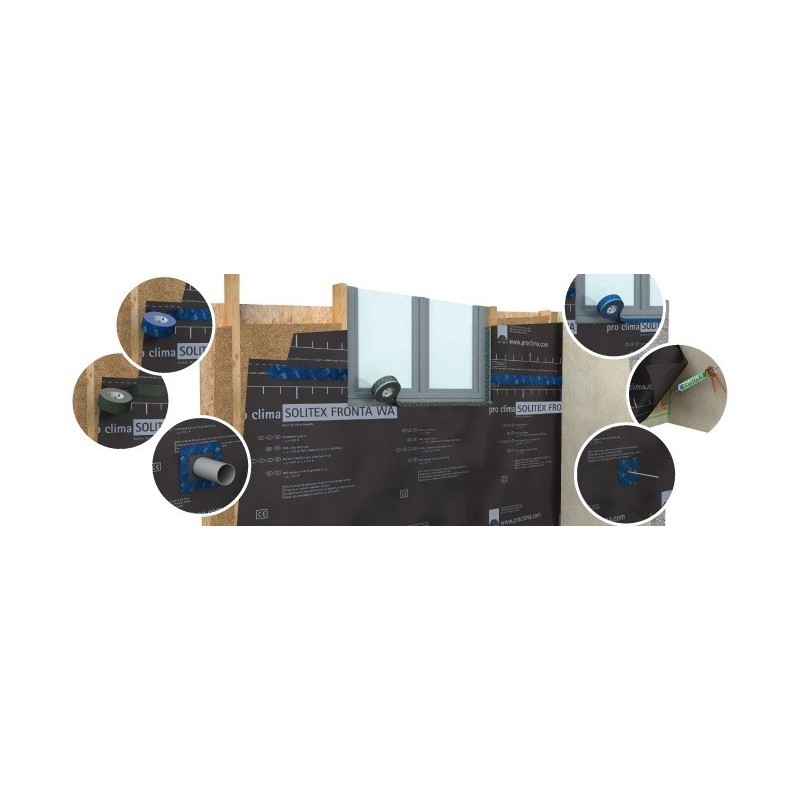

SOLITEX FRONTA WA membranes can be can be laid flat either at right angles to or along the sub-structure without sagging. Horizontal installation is preferable with regard to water tightness during the construction phase.

The membrane must not be secured in areas where water collectively drains off.

The membrane can be used behind closed facades with at least 20 mm (1") of rear ventilation.

Additional measures during the building phase (e.g. covering with tarpaulin) should be taken in the case of occupied buildings or buildings that need particular protection. Covering with tarpaulin should also be considered in the case of extended interruptions to work.

Download

Gegevensblad FRONTA WA

Download (488.73KB)
